The standard 6-foot power cord accommodates most installation locations. For locations where it does not, Tonal’s priority is always to ensure every trainer is safely powered. The following details outline the requirements for an alternative power cord if the standard power cord does not fit your space.
Cord specifications:
Three (3) conductor cables with NEMA 5-15P to C13 connectors
Minimum 14 AWG wire
15A rating
120 VAC
Type SJ or SJT (Stranded Junior Thermoplastic) Cable
UL/CSA certified
Maximum length 15 feet
An example cord that meets these requirements is Tripp-Lite part number P007-012.
Any cord that does not meet the requirements above is not recommended for use and could affect your Tonal Warranty.

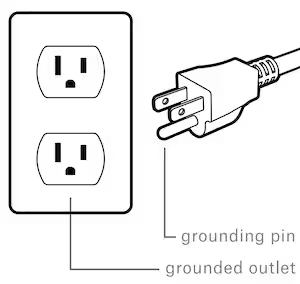

Tonal is for use on a nominal 120-V circuit. All supported power cords will have a grounding plug. Ensure your Tonal is connected to an outlet with the same configuration as the plug. No adapter should be used with Tonal.
Best Practice: When plugging and unplugging your Tonal, please act with caution to ensure that the AC rocker switch, which is located at the bottom of the Tonal, is turned to the “OFF” position BEFORE plugging the power cord into the outlet. We want to avoid the rare occurrence of sparks igniting when plugging the Tonal in.
If you need further assistance, please give us a call at 855-MY-TONAL.
