Everything You Need To Know About Wide Mount Adapters
We designed our standard wall mount bracket to fit wall studs found in the majority of homes. Studs are generally spaced 16 inches apart—measured from the center of the stud.
A Tonal installation on a wall with 17–24 inch stud spacing requires additional hardware. Installers attach Wide Mount Adapter Bars to the standard wall mount bracket. The bracket then secures to the wall through the Adapter Bar’s mounting holes, which accommodates a greater range of stud placements.

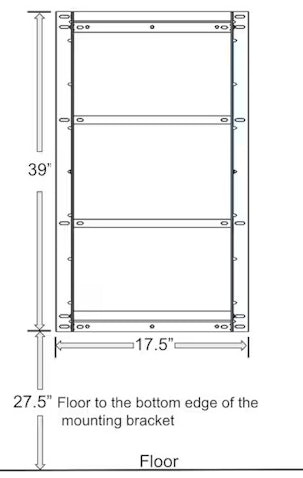

Wall Bracket for 16” Stud Spacing

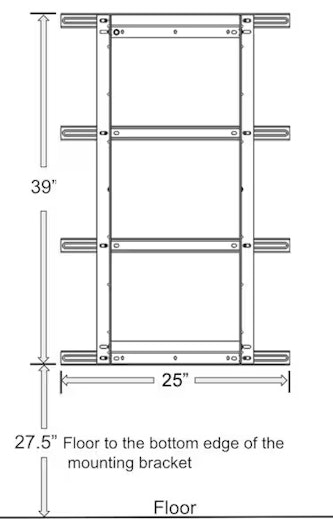

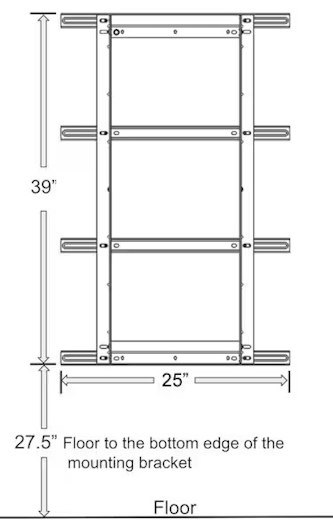

Wall Bracket with Adapter Bars for 17” – 24” Stud Spacing
Check out these articles for more information:
Wide Mount Covers
Wide mount covers are optional accessories that attach to the sides of your Tonal. Once installed, these two panels cover up the exposed wall bracket behind the trainer.

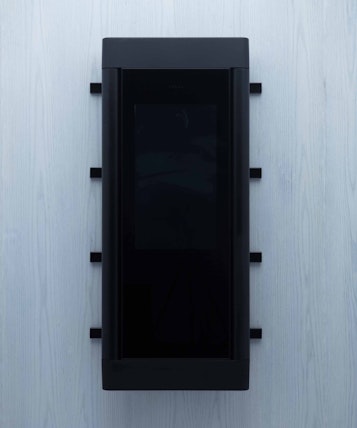

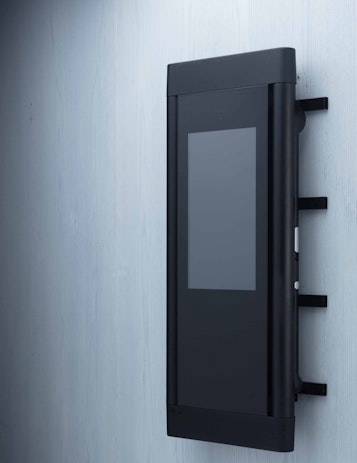

Without wide mount covers:

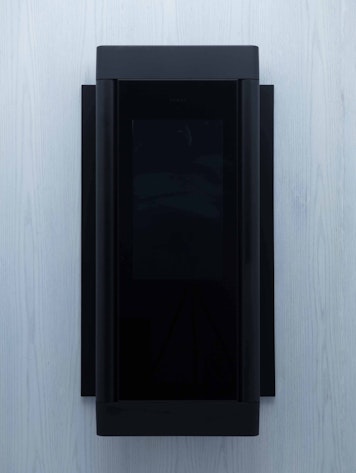

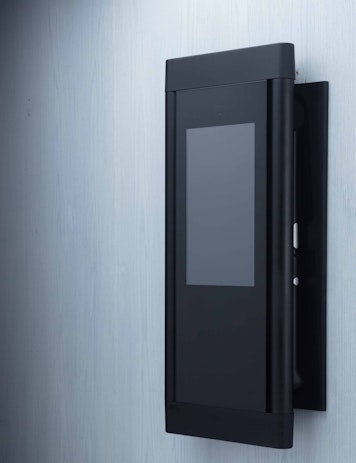

With wide mount covers:
Don't see what you need here? Give the team a call at 855-MY-TONAL!
