Tonal Mounting Bracket Dimensions
The following diagram shows the Tonal mounting bracket dimensions:
From your floor to the bottom of the bracket
From the bottom of the bracket to the top of the bracket
The width of the bracket

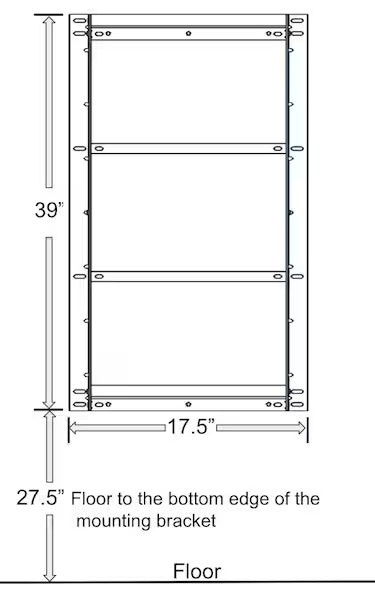

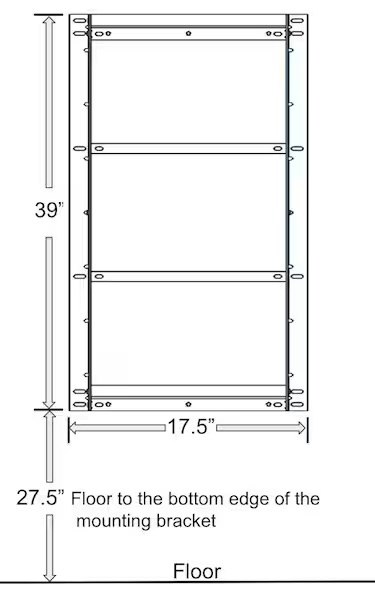

Wall bracket for 16” stud spacing

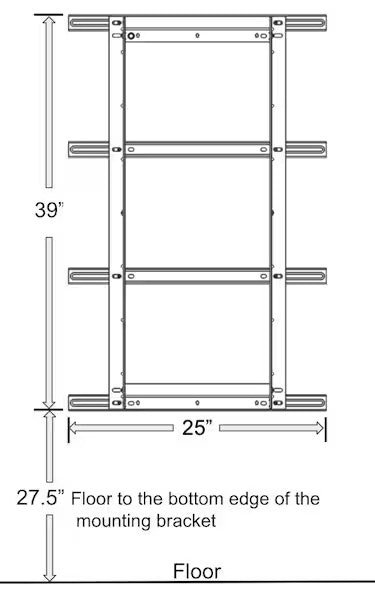

Wall bracket with adapter bars for 17” – 24” stud spacing
If you need further assistance, please give us a call at 855-MY-TONAL.
