Please refer to the steps below to assemble your Tonal bench.
Tools Needed
14mm socket
17mm socket
Socket wrench
Optional substitution: Crescent wrench or 14mm and 17mm box wrench
Provided Materials

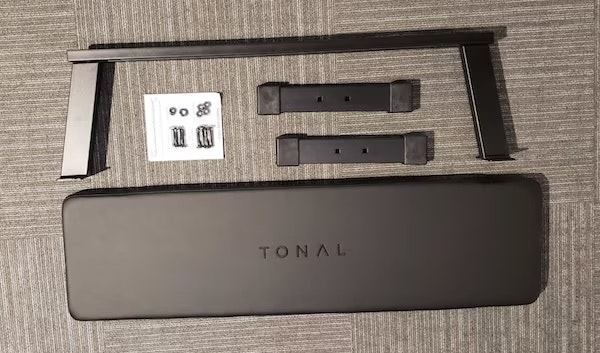

Bench and leg assembly
M10 x 45mm carriage bolt (4)
M10 nylon nut (4)
M8 x 40mm hex bolt (4)
M10 washer (4)
M8 washer (4)
Steps to Assemble Tonal Bench
Step 1: Unpack the Bench

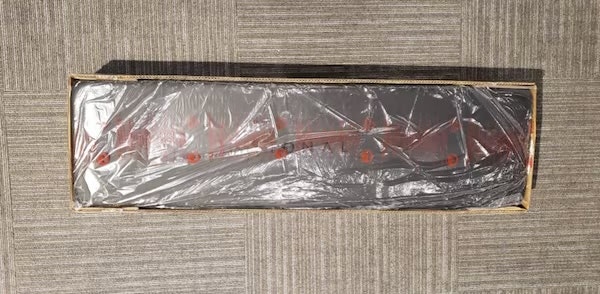

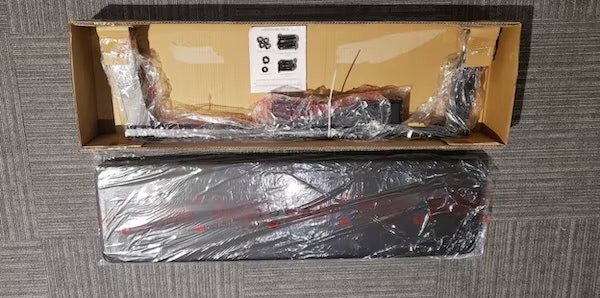

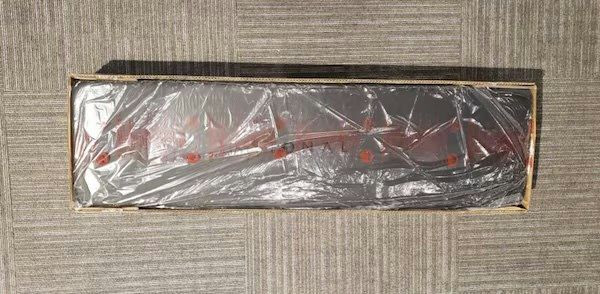

1. Open the bench box.
Remove all plastic wrap covering the bench materials.
Step 2: Attach Legs to Bench Top

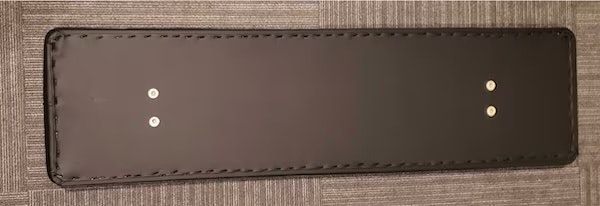

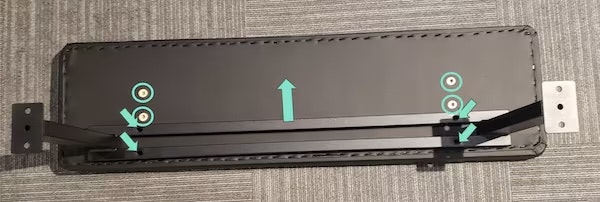

1. Flip the bench top so that the Tonal logo is facing the floor.
2. Set the legs with the long flat bar touching the bench.

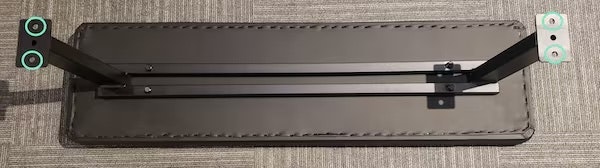

3. Align the four holes in the legs with the four holes in the bench top.

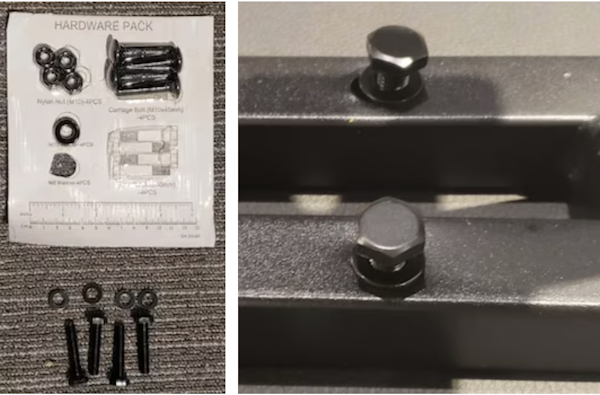

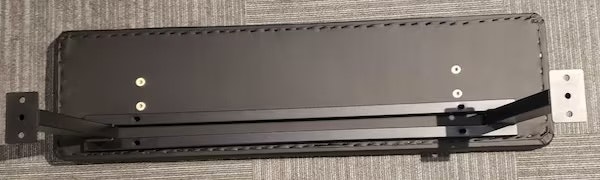

4. Use M8 x 40mm hex bolts (4) and M8 washers (4) to secure the legs. Tighten the bolts using a 14mm socket.
Step 3: Attach Feet to Legs

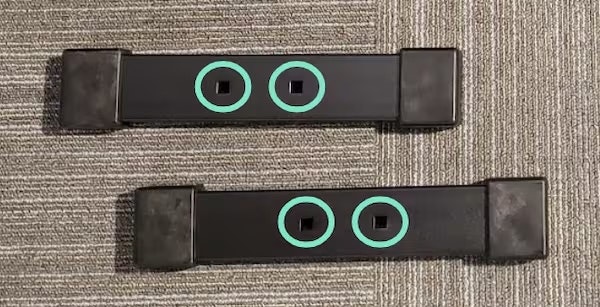

1. Identify the holes in the feet and the legs.

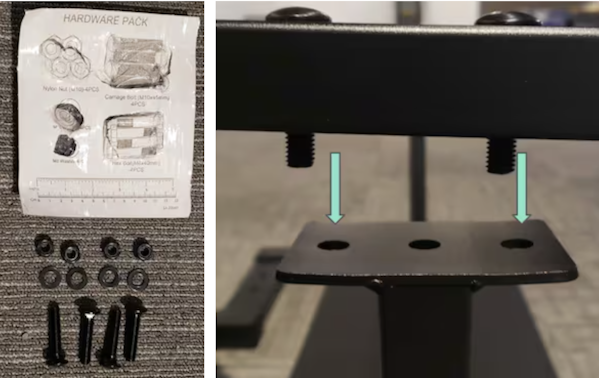

2. Use M10 x 45mm carriage bolts (4), M10 washers (4), and M10 nylon nuts (4) to secure the feet to the legs.

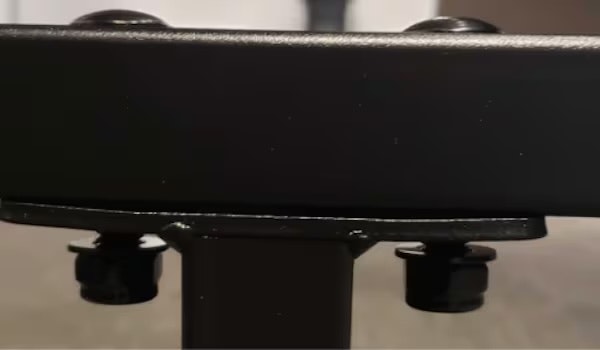

3. Once the bolts are through the holes, apply one washer and one nylon nut to each bolt. Tighten all four using a 17mm socket.
If you need further assistance, please give us a call at 855-MY-TONAL.
